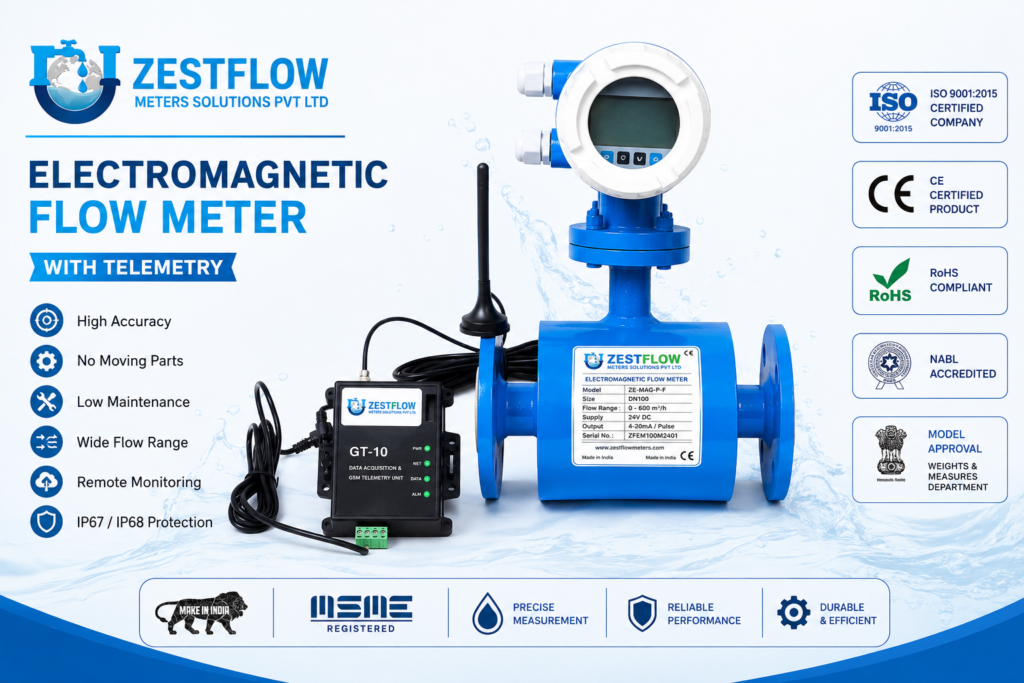

ZESTFLOW GT-10 is a Quad-band intelligent GPRS IoT gateway suitable for remote monitoring and automation. ZESTFLOW GT-10 has the capability of integrating seamlessly with almost every sensor globally where it periodically collects the data from sensors via Modbus RS 485 & communicates with cloud using GPRS in real time. It is completely customizable where we can add peripheral add-ons, enabling it to cater to the most complex requirements. It is very simple to install, just plug & play and let the ZESTFLOW GT-10 do all the magic.
|
GSM Frequency |
LTE FDD: B1/B3/B5/B8 LTE TDD: B34/B38/B39/B40/B41 Class 3 (23dBm±2dB) for LTE bands Class 1 (1W @ 1800/1900 MHz) |
|
GPRS |
GPRS multi-slot class 12 GPRS mobile station class B |
|
SIM Interface |
Full size – 3.3V or 1.8V compatible |
|
Transmit Protocol |
TCP, HTTP, MQTT |
|
OTA |
Firmware Updating via GPRS |
|
Antenna |
External 3 meter extendable antenna |
|
Electrical Standard |
TTL or RS-232 or RS-485 |
|
RS-485 Port |
Multiple Modbus Slave Device Connection |
|
RS-485 Modes |
Transparent / Modbus Polling Formatted (ASCII/HEX/RawHEX) with configurable baud rate |
|
LED Indicator |
Power, GSM, Modbus Communication Status |
|
Connector |
5 mm Micro-Fit connectors |
|
Dimension |
100mmx85mmx24mm(LxWxH) |
|
Weight |
160 grams |
|
Operating Voltage |
10V to 32V DC |
|
Operating Temperature |
-10C to +55C |
