Introduction
Online Water Analyzer Continuous Effluent Monitoring System (Water Analyser) is a device that measures and records the quality of industrial wastewater, emissions from effluent streams. The system uses specialized sensors and instruments to continuously monitor various parameters such as pH, BOD COD, TSS, flow rate and other chemical concentrations required and provides real-time data to ensure that effluent discharge is in compliance with environmental regulations. The data collected by CEMS is often used to optimize treatment processes and improve the sustainability of industrial operations. It works by measuring the absorption or transmission of UV light (200nm to 750nm) by a sample and determining the specific wavelengths of light that are absorbed or transmitted. This information can then be used to identify the presence and concentration of specific chemical compounds in the sample and to study the molecular structure and bonding of the compounds.
The online water analyzer provides reliable and accurate results with low cost of ownership. It is easy to install, with minimal maintenance requirements, and is designed to operate in harsh industrial environments. The analyzer is suitable for a wide range of applications, including wastewater treatment, drinking water, process control, and environmental monitoring.
Important Application
- ETP: To monitor water quality from ETP outlet
- Environmental Monitoring: To monitor water quality in rivers, lakes, and oceans
- Drinking Water Treatment: To ensure the safety and quality of drinking water
- Industrial Process Control: To monitor water quality in industrial processes such as power generation, mining, and food & beverage production
- Aquaculture: To monitor water quality in fish farms
- Pool and Spa Management: To monitor pH and chlorine levels in swimming pools and spas
- Agriculture: To monitor water quality in irrigation systems and test soil moisture content
- Laboratories: To support research and analysis in chemistry, biology, and environmental science
- Plant treatment, Water treatment, Pharmaceutical applications, Biological applications, oxidizing applications etc etc.
Important Features
- Real-Time Monitoring: The system continuously monitors water quality parameters in real time and provides updated readings
- Multiple Parameter Analysis: Measures parameters such as pH, TSS, BOD, COD, Conductivity, Turbidity, Chlorine, Ammonia, Nitrite, and Nitrate
- Data Logging: Stores and logs data for later analysis and reporting
- Alarm & Notification System: Generates alerts in case of critical changes in water quality parameters
- User-Friendly Interface: Easy to use and understand, even for operators with limited technical knowledge
- Remote Access: Allows monitoring and control from remote locations in real time
- Scalability: Designed to expand and adapt to future requirements
- Reliability: Built for long-term operation and capable of withstanding harsh environmental conditions
- Sensors: Uses high-quality, accurate, and durable sensors suitable for ETP environments
- Data Transmission: Utilizes secure and reliable wired or wireless communication to transfer data to the control room
- Data Processing: Equipped with robust systems to handle large data volumes, perform calculations, and deliver real-time results
- Calibration: Includes automatic calibration for accuracy, with manual calibration options available
- Power Supply: Ensures continuous operation with a stable and reliable power source
- Environmental Protection: Features protection against water, dust, and extreme temperatures for safe operation in harsh conditions
- Interoperability (Optional): Compatible with SCADA systems, PLCs, and other control systems for seamless integration

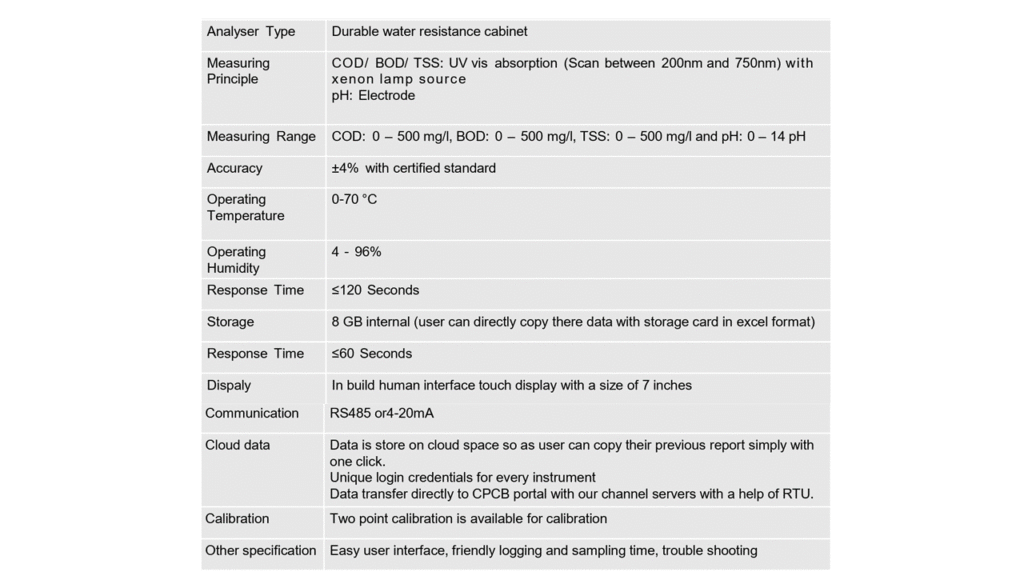

Specification
Sensors Specification
- Biochemical Oxygen Demand (BOD)
- Range: 0 to 500 mg/L
- Accuracy: ±2% or ±0.2 mg/L, whichever is greater
- Resolution: 0.01 mg/L
- Repeatability: ±0.5 mg/L or ±2% of reading, whichever is greater
- Reproducibility: ±1 mg/L or ±2% of reading, whichever is greater
- Chemical Oxygen Demand (COD)
- Range: 0 to 500 mg/L
- Accuracy: ±2% or ±10 mg/L, whichever is greater
- Resolution: 1 mg/L
- Repeatability: ±5 mg/L or ±2% of reading, whichever is greater
- Reproducibility: ±10 mg/L or ±2% of reading, whichever is greater
- Total Suspended Solids (TSS)
- Range: 0 to 500 mg/L
- Accuracy: ±2% or ±10 mg/L, whichever is greater
- Resolution: 1 mg/L
- Repeatability: ±5 mg/L or ±2% of reading, whichever is greater
- Reproducibility: ±10 mg/L or ±2% of reading, whichever is greater
- pH Sensor
- Method of Analysis: Electrode Method
- Range: 0 to 14 pH
- Accuracy: ±0.1 pH
- Resolution: 0.01 pH
- Repeatability: ±0.05 pH or ±2% of reading, whichever is greater
- Reproducibility: ±0.1 pH or ±2% of reading, whichever is greater
- Flow Measurement
- Method of Analysis: Electro-Magnetic Flow Meter
- Range: Depends on line size
- Accuracy: ±2% or ±0.2 L/min, whichever is greater
- Resolution: 0.01 L/min
- Repeatability: ±0.1 L/min or ±2% of reading, whichever is greater
- Reproducibility: ±0.2 L/min or ±2% of reading, whichever is greater
Conclusion: Transforming Water Monitoring with Intelligence
We at Zestflow Meters Solutions are committed to delivering state-of-the-art Online Water Analyzer systems that redefine how water quality is monitored and managed. Our solutions empower industries and organizations with real-time insights, enhanced control, and improved efficiency, ensuring compliance, sustainability, and operational excellence.
